THE 300 SERIES
BUILT TO GO RANGE

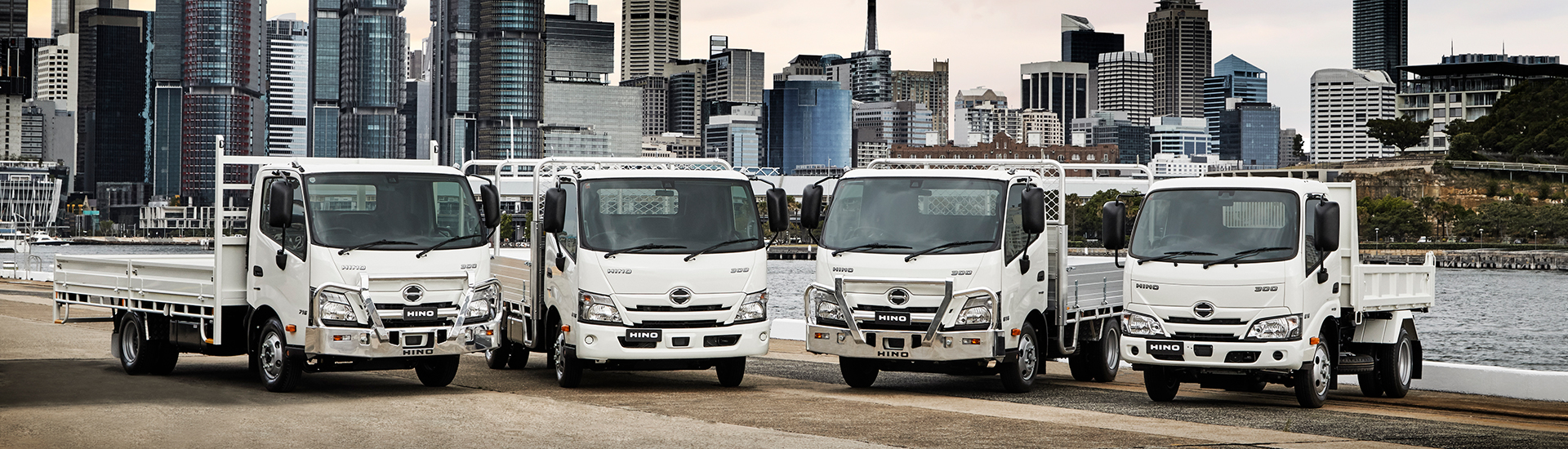

The Hino 300 Series Built to Go range offers light-duty customers a high quality, cost effective and versatile drive away solution.

Featuring class leading levels of safety with Hino SmartSafe and in cab technology found in all 300 Series models, these trucks are the safest Japanese trucks on the market.

Customers can take advantage of a true automatic transmission and combine that with a Hino Genuine body, Australia’s hardest working trucks are ready to go right now.

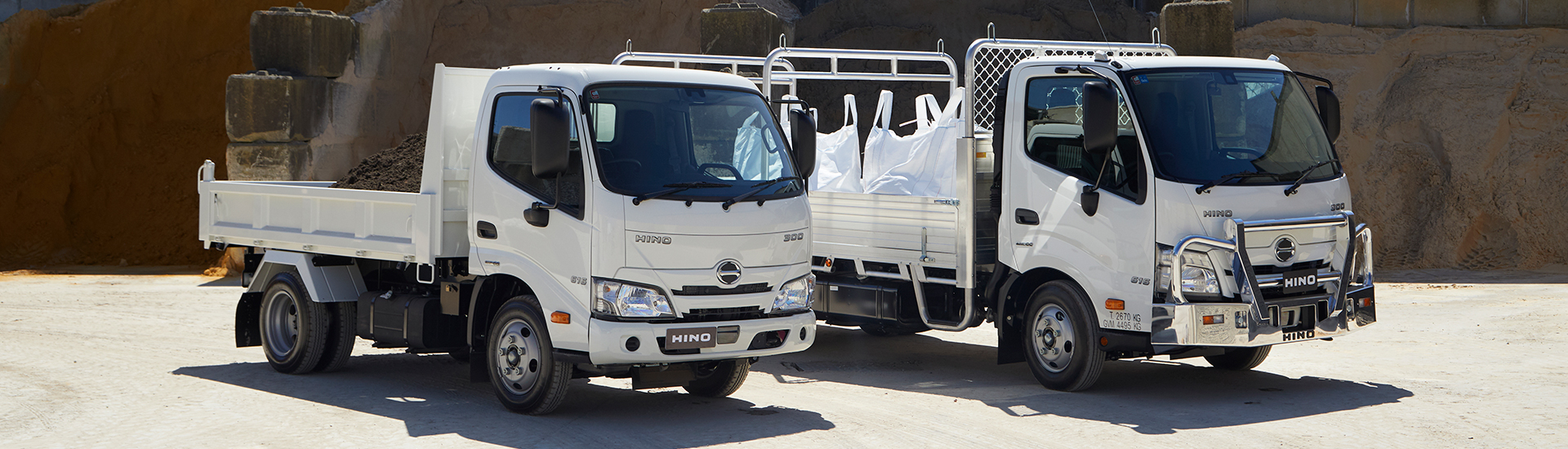

PERFORMANCE

GVM:
4.5-6.5

GCM for Manual:
GVM + 3.5

GCM for Auto:
8.0

POWER:
150-165 hp

TORQUE:
420-464 Nm

TRANSMISSION:
Automatic or manual

BODY

DIMENSIONS:
3.0-3.6m internal lengths

MATERIAL:
Steel

CAPACITY/LOAD:
Up to 2.9 tonne of payload

ACCESSORIES:
View range of accessories here.

Starting from the 616 Standard Cab which can haul 1.7 tonnes of payload on a car licence and spaces, up to the 717 Wide Cab variant carrying up to 2.9 tonne payload.

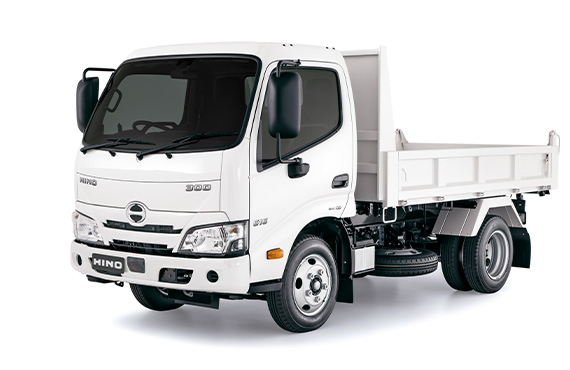

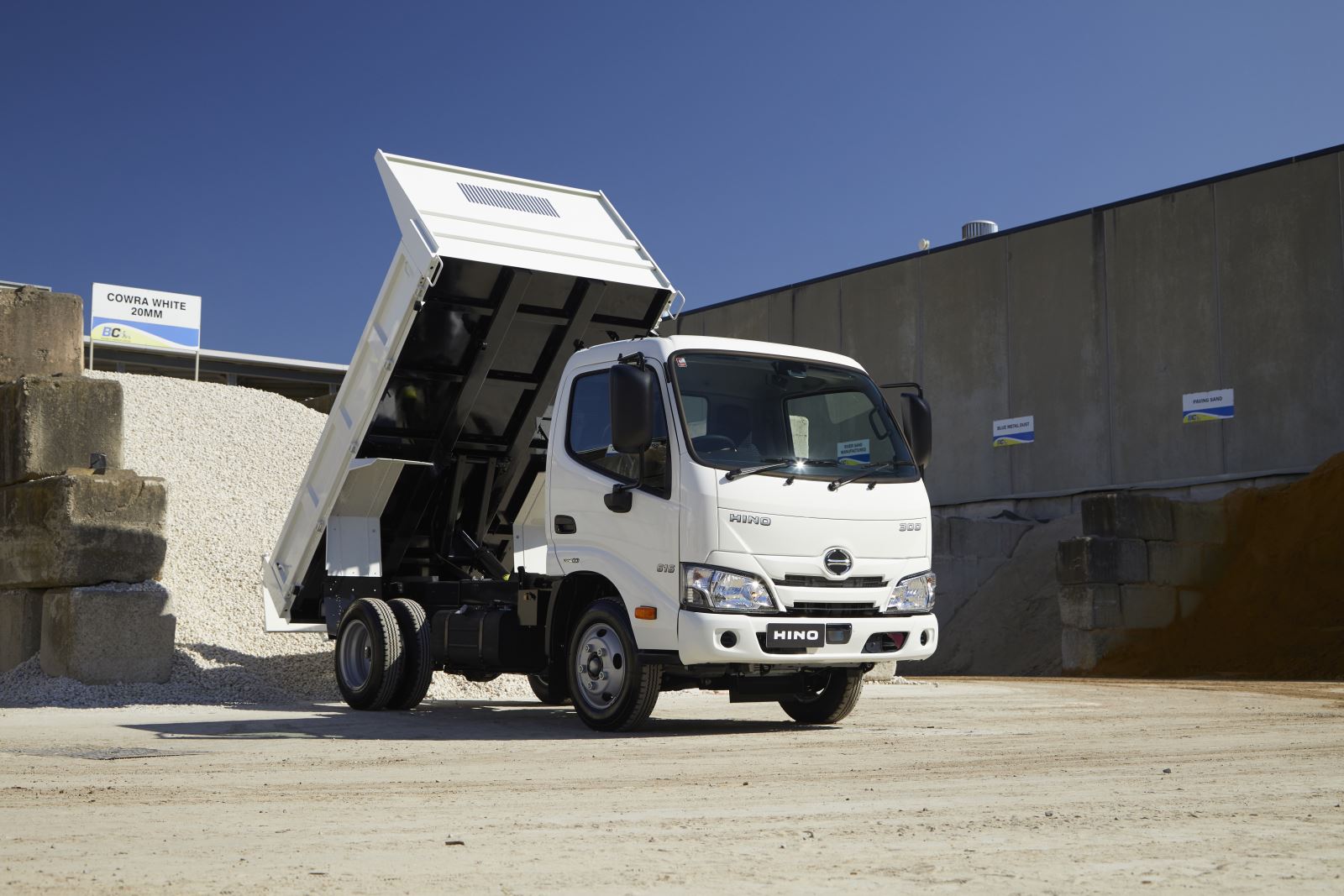

The Hino Built to Go Tippers come in a range of body lengths and available in Standard and Wide Cab variants.

Also featuring Hino SmartSafe, a comprehensive safety package found in all 300 Series 4x2 trucks.

Looking for a more versatile body specification in the Tipper range? Check out the Hino 300 Series Tipper Pro with barn doors, body lock, and rope rails. Click here.

Looking for a bigger Tipper? Check out the medium-duty Hino Tipper & Tipper Pro available with the Hino 500 Series Standard Cab FC 1124. Click here.

PERFORMANCE

GVM:
4.5-8.5

GCM for Manual:
GVM + 3.5

GCM for Auto:
8.0

POWER:
150-165 hp

TORQUE:
420-464 Nm

TRANSMISSION:
Automatic or manual

BODY

DIMENSIONS:
3.0-4.0m internal lengths

MATERIAL:
Steel

CAPACITY/LOAD:
Up to 4.7 tonne of payload

ACCESSORIES:
View range of accessories here.

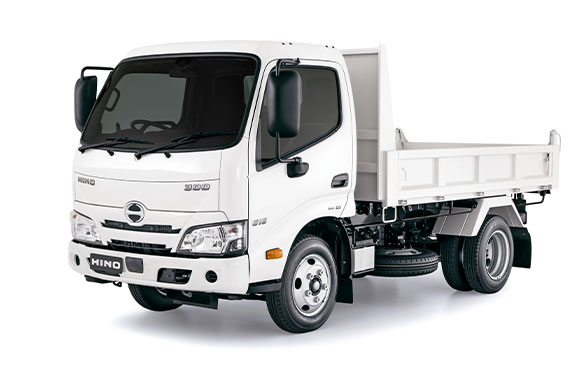

Complementing the 300 Tipper range, the Tipper Pro models offer a more versatile body specification including a barn door tailgate design, body lock, and rope rails. Starting from the 616 Standard Cab which can haul 1.7 tonnes of payload on a car licence, up to the 917 Wide and Crew Cab variants carrying up to 4.7 tonne payload.

The Hino Built to Go Tipper Pro models come in a range of body lengths and available in Standard, Wide and Crew Cab variants. Also featuring Hino SmartSafe, a comprehensive safety package found in all 300 Series 4x2 trucks.

Looking for a bigger Tipper? Check out the medium-duty Hino Tipper & Tipper Pro available with the Hino 500 Series Standard Cab FC 1124. Click here.

PERFORMANCE

GVM:
4.5-6.5

GCM:
GVM + 3.5*
*150 hp Auto to 8.0

POWER:
150-205 hp

TORQUE:
420-600 Nm

TRANSMISSION:
Automatic or manual

BODY

DIMENSIONS:
3.1-4.4m internal lengths

MATERIAL:
Aluminium

CAPACITY/LOAD:
Up to 3.4 tonne of payload

ACCESSORIES:
Standard Bullbar fitment for Wide Cab and Nudge Bar or Standard Cab. All models complete with ladder racks.

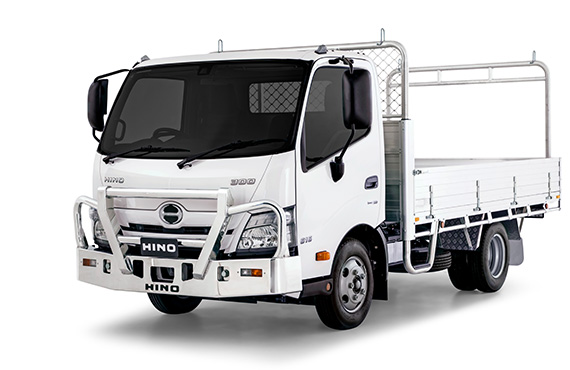

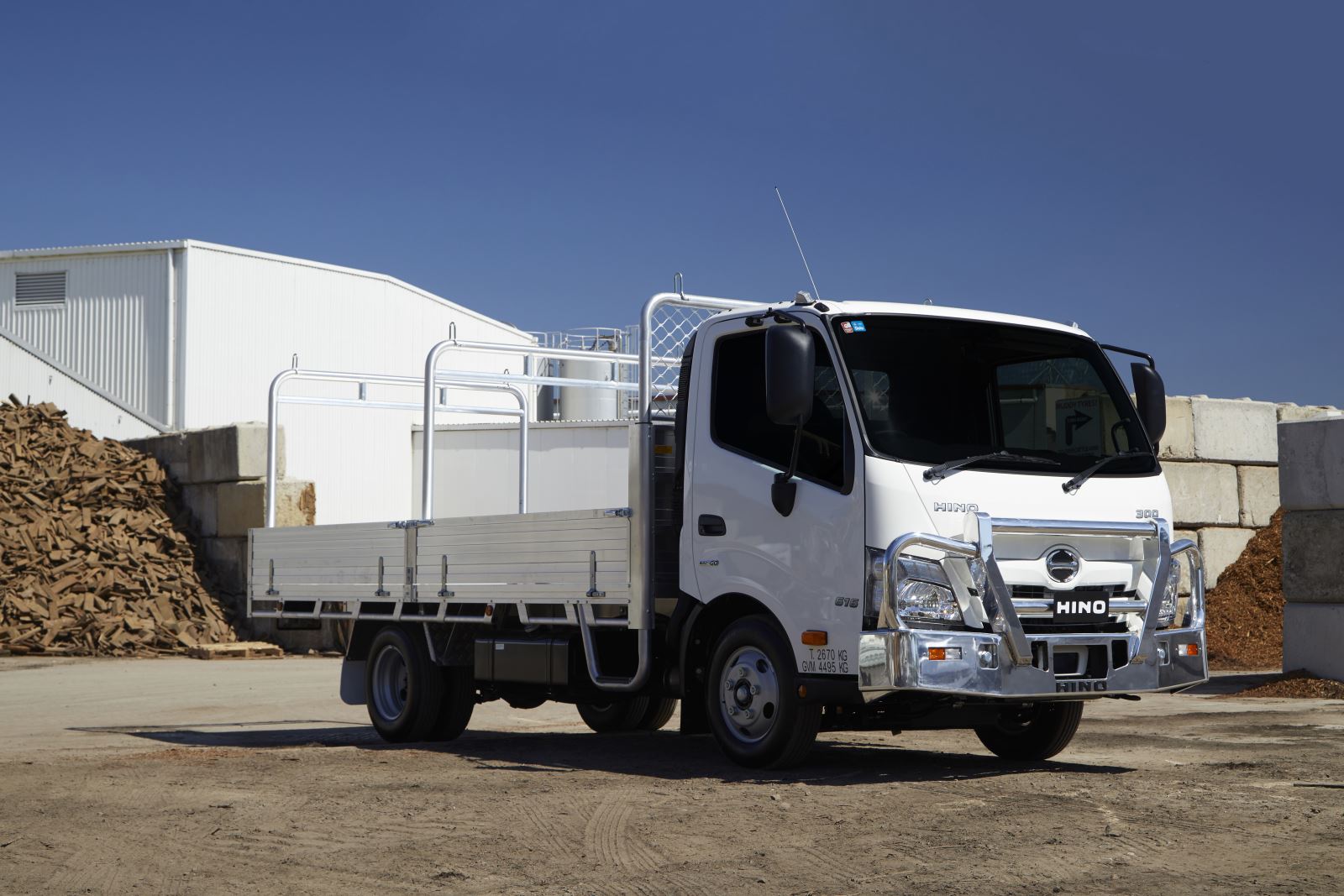

The Hino Built to Go TradeAce is factory fitted with a Hino Genuine Alloy Tray, complete with ladder racks and Nudge/Bullbar. All models can be rated at 4.5 tonne to be driven on car licence or uprated to either 5.5 or 6.5 tonne for maximum payload.

The Hino TradeAce range come in a range of body lengths and are available in Standard, Wide and Crew Cab variants. Also featuring Hino SmartSafe, a comprehensive safety package found in all 300 Series 4x2 trucks.

PERFORMANCE

GVM:
4.5-6.5

GCM:
GVM + 3.5*
*150 hp Auto to 8.0

POWER:
150-205 hp

TORQUE:
420-600 Nm

TRANSMISSION:
Automatic or manual

BODY

DIMENSIONS:
3.1-4.4m internal lengths

MATERIAL:
Aluminium

CAPACITY/LOAD:
Up to 3.4 tonne of payload

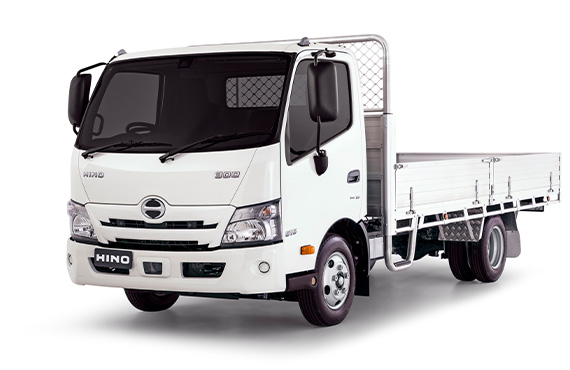

Recently new to the market, the Hino Built to Go Alloy Tray features the same Hino Genuine tray body specifications as the TradeAce but sold without the Genuine Accessories. All models can be rated at 4.5 tonne to be driven on car licence or either 5.5 or 6.5 tonne for maximum payload.

The Hino Alloy Tray range come in a range of body lengths and available in Standard, Wide and Crew Cab variants. Also featuring Hino SmartSafe, a comprehensive safety package found in all 300 Series 4x2 trucks.

PERFORMANCE

GVM:
4.5-6.5

GCM for Manual:
GVM + 3.5

GCM for Auto:
8.0

POWER:
150-165 hp

TORQUE:
420-464 Nm

TRANSMISSION:
Automatic or manual

BODY

DIMENSIONS:
4.4m internal length

MATERIAL:
Steel

CAPACITY/LOAD:
Up to 3 tonne of payload

ACCESSORIES:
Standard Bullbar fitment, complete with ladder racks.

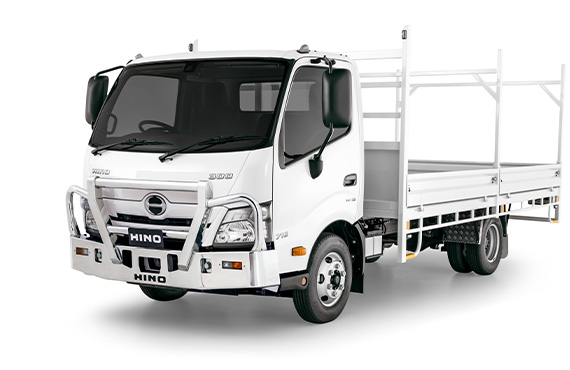

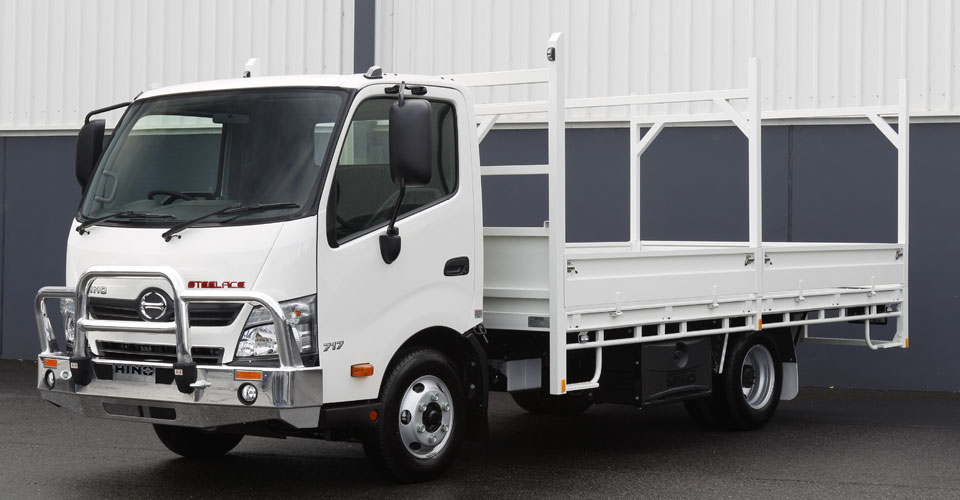

The Hino Built to Go SteelAce is the solution for customers needing a tray tough enough to handle hard, heavy work and point loads. Starting from the 616 Wide Cab to suit car licence, up to 717 for maximum payload of 3 tonne.

Also featuring Hino SmartSafe, a comprehensive safety package found in all 300 Series 4x2 trucks.

SAFETY

SAFEST JAPANESE TRUCK IN ITS CLASS

Boasting a list of standard safety features, making it the safest truck ever offered by a Japanese manufacturer in the Australian light-duty truck market. The Hino 300 Series features Hino SmartSafe, a comprehensive safety package with advanced driver-assist technology that takes an active focus in protecting the life of drivers, passengers and other road users.







PRE-COLLISION SYSTEM

If PCS detects the possibility of a collision with a vehicle in front, using radar and image sensors, it will warn you to apply the brakes. If you don’t respond, the truck can brake autonomously.

PEDESTRIAN DETECTION

If PCS detects a pedestrian in front and senses the possibility of a collision it will warn you. If you don’t respond, the truck can brake autonomously.

LANE DEPARTURE WARNING SYSTEM

The LDWS uses the PCS camera, and can provide the driver with both audible and visual cues if the truck is deviating from its lane without the turn indicators being engaged by the driver.

VEHICLE STABILITY CONTROL

VSC is designed to help drivers maintain vehicle control and help prevent the truck from rolling over or sliding when entering or exiting a corner too fast.

REVERSE CAMERA

Offers wide view, high definition vision, along with infrared night vision. Includes a microphone with volume control which allows the driver to hear their surroundings.

DAYTIME RUNNING LAMPS

DRL’s are designed to highlight the truck’s presence to other road users and run any time the truck headlamps are not being operated. Boasting enhanced aesthetics as well as safety.

TECHNOLOGY

INNOVATION AND INFORMATION

Designed for purpose, the cab ergonomics have been enhanced throughout for a high degree of comfort. The instrumentation panel is impressive to look at and intuitive to work with. Innovative features maximise efficiency and driver enjoyment, resulting in a workspace you want to be in.





MULTIMEDIA UNIT

6.5” high definition, capacitive touch screen is capable of connecting up to four multi-position cameras, with AM/FM and DAB+ radio, Bluetooth and mobile phone connectivity.

DRIVER INSTRUMENT PANEL

4.2” TFT LCD Multi Information Display with an enlarged and centralised speedometer, an offset tachometer, a suite of warning gauges and lights to improve readability.

CRUISE CONTROL

Automatically controls the road speed of the vehicle as set by the driver, which reduces fatigue and can improve overall fuel efficiency.

PERFORMANCE

POWER AND EFFICIENCY AHEAD OF THE REST

Equipped with a range of drivelines including 4 and 5 litre common-rail turbo diesel engines, which not only meet Euro 5 and EEV emissions standards but deliver an ideal combination of power and efficiency. Hino continues to be the only Japanese truck manufacturer to offer the advantage of a true automatic transmission across the 4x2 model range.







ENGINE

The engine line-up starts with the N04C, producing up to 150hp and 420Nm and continues all the way to the J05E found in the 721 and 921 models, producing up to 205hp and 600Nm.

AUTOMATIC TRANSMISSION

True automatic transmissions are available across the range, offering no torque interruptions between gear shifts, smooth driveability and lower whole of life costs.

MANUAL TRANSMISSION

Drivers who still prefer a manual transmission, for Standard Cab there is a Hino five-speed manual gearbox and for Wide Cab a Hino six-speed manual gearbox is available.

COMFORT

DESIGNED FOR THE DRIVER

Enhanced levels of comfort and functionality have been applied to the design to ensure better accessibility and ultimately improve the overall driving experience.

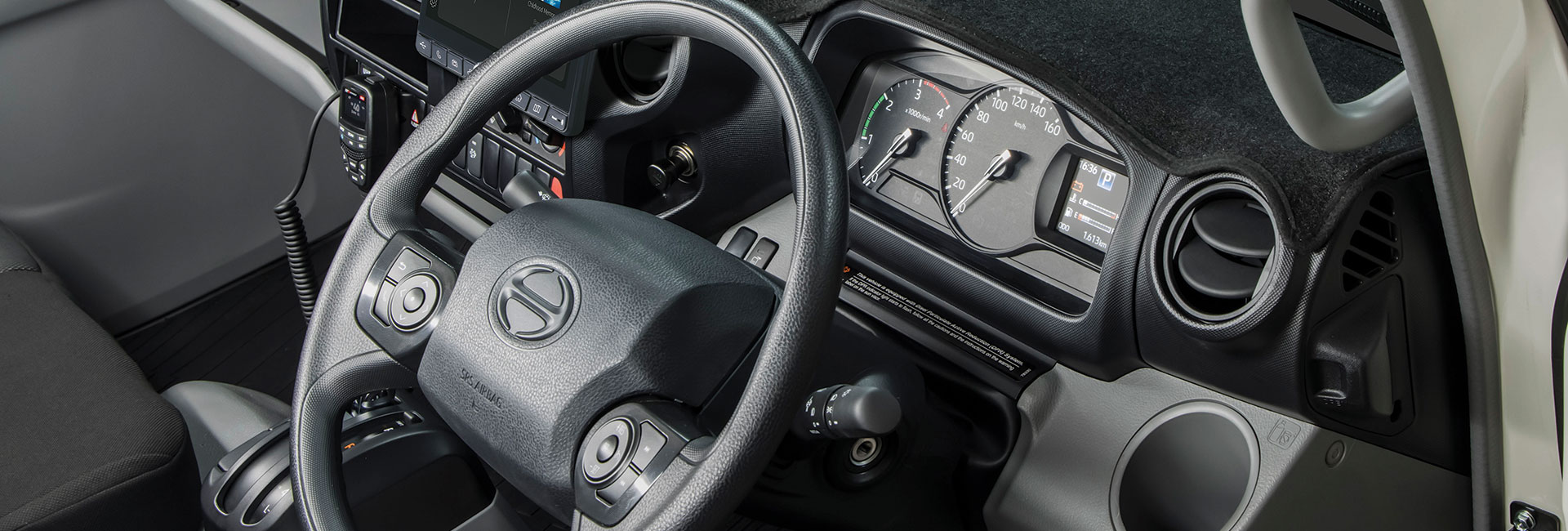

ERGONOMICS

Superior levels of interior ergonomics have been designed with the driver in mind. Improved dash layout, ample storage, new steering wheel controls and enhanced driver comfort.

STEERING

Easily tilt and reposition the steering wheel for optimum driver comfort. The telescopic steering column is designed with an energy absorbing steering wheel to protect the driver.

DRIVER’S SEAT

All models are fitted with an ergonomically designed fully adjustable driver’s seat for maximum comfort. All Wide cab models include a suspended driver’s seat.

SPECIFICATIONS



AXLES TYPE LICENCE MODEL TRANS GVM GCM HP/Nm BODY SPEC
4x2 TIPPER CAR / LR 616 STD MAN 4.5/5.5 GVM + 3.5 150 / 420 3.0m / 1.9m³ Enquiry
TIPPER CAR / LR 616 STD AT 4.5 / 5.5 8.0 150 / 420 3.0m / 1.9m³ Enquiry
TIPPER CAR / LR 616 WIDE AT 4.5 / 5.5 8.0 150 / 420 3.1m / 2.1m³ Enquiry
TIPPER CAR / LR 617 WIDE MAN 4.5 / 5.5 GVM + 3.5 165 / 464 3.1m / 2.1m³ Enquiry
TIPPER CAR / LR 716 WIDE AT 6.5 / 4.5 8.0 150 / 420 3.6m / 3.0m³ Enquiry
TIPPER CAR / LR 717 WIDE MAN 6.5 / 4.5 GVM + 3.5 165 / 464 3.6m / 3.0m³ Enquiry
TIPPER CAR / LR 717 WIDE CREW MAN 6.5 / 4.5 GVM + 3.5 165 / 464 3.8m / 3.2m³ Enquiry
TIPPER CAR / LR 816 WIDE CREW AT 8.0 / 4.5 8.0 150 / 420 3.8m / 3.2m³ Enquiry
TIPPER LR / MR 917 WIDE MAN 8.0 / 8.5 GVM + 3.5 165 / 464 3.6m / 3.0m³ Enquiry
TIPPER LR / MR 917 CREW MAN 8.0 / 8.5 GVM + 3.5 165 / 464 4.0m / 3.4m³ Enquiry
TRADEACE CAR / LR 616 STD MAN 4.5 / 5.5 GVM + 3.5 150 / 420 3.1m ~ 4.5m Enquiry
TRADEACE CAR / LR 616 STD AT 4.5 / 5.5 8.0 150 / 420 3.1m ~ 4.5m Enquiry
TRADEACE CAR / LR 616 WIDE AT 4.5 / 5.5 8.0 150 / 420 3.5m ~ 4.5m Enquiry
TRADEACE CAR / LR 616 WIDE CREW AT 4.5 / 5.5 8.0 150 / 420 3.5m ~ 4.5m Enquiry
TRADEACE CAR / LR 617 WIDE MAN 4.5 / 5.5 GVM + 3.5 165 / 464 3.5m ~ 4.5m Enquiry
TRADEACE CAR / LR 721 WIDE AT 6.5 / 4.5 GVM + 3.5 205 / 600 4.5m Enquiry
TRADEACE CAR / LR 721 WIDE CREW AT 6.5 / 4.5 GVM + 3.5 205 / 600 4.5m Enquiry
ALLOY TRAY CAR / LR 616 STD MAN 4.5 / 5.5 GVM + 3.5 150 / 420 3.1m ~ 4.5m Enquiry
ALLOY TRAY CAR / LR 616 STD AT 4.5 / 5.5 8.0 150 / 420 3.1m ~ 4.5m Enquiry
ALLOY TRAY CAR / LR 616 WIDE AT 4.5 / 5.5 8.0 150 / 420 3.5m ~ 4.5m Enquiry
ALLOY TRAY CAR / LR 616 WIDE CREW AT 4.5 / 5.5 8.0 150 / 420 3.5m ~ 4.5m Enquiry
ALLOY TRAY CAR / LR 617 WIDE MAN 4.5 / 5.5 GVM + 3.5 165 / 464 3.5m ~ 4.5m Enquiry
ALLOY TRAY CAR / LR 721 WIDE AT 6.5 / 4.5 GVM + 3.5 205 / 600 4.5m Enquiry
ALLOY TRAY CAR / LR 721 WIDE CREW AT 6.5 / 4.5 GVM + 3.5 205 / 600 4.5m Enquiry
STEELACE CAR / LR 616 AT 4.5 / 5.5 8.0 150 / 420 4.5m Enquiry
STEELACE CAR / LR 617 MAN 4.5 / 5.5 GVM + 3.5 165 / 464 4.5m Enquiry
STEELACE CAR / LR 716 AT 6.5 / 4.5 8.0 150 / 420 4.5m Enquiry
STEELACE CAR / LR 717 MAN 6.5 / 4.5 GVM + 3.5 165 / 464 4.5m Enquiry
