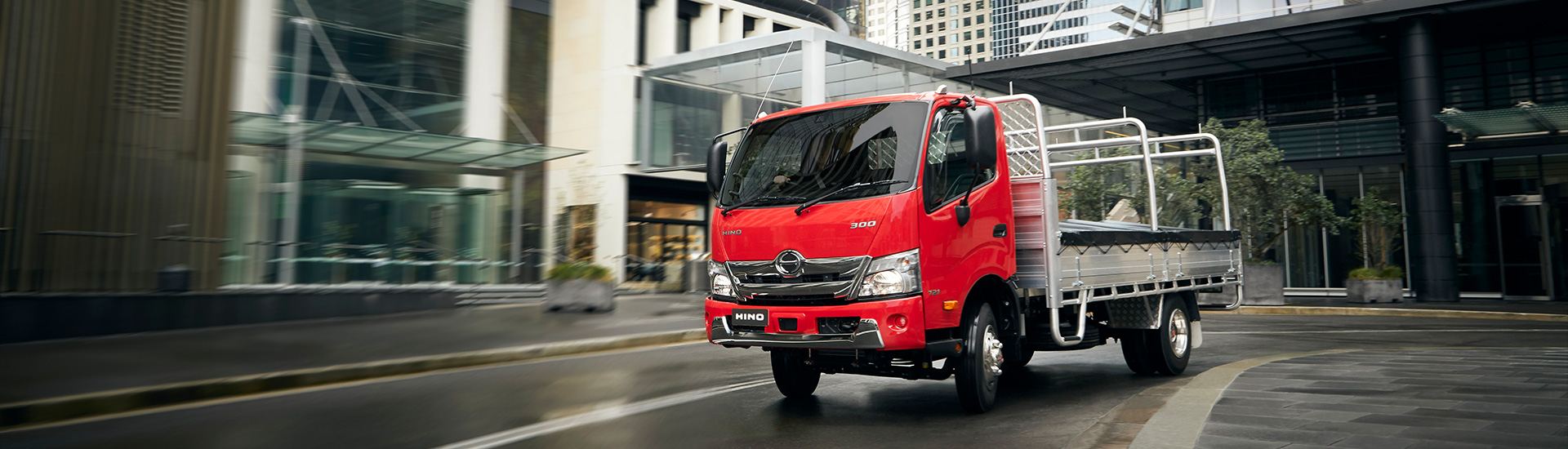

THE HINO 300 SERIES

The Hino 300 Series set the safety, performance and efficiency benchmark of what Australian customers should expect from a light-duty truck. Delivering enhanced levels of cab comfort, interior ergonomics and innovative technology, it’s built for anything.

Featuring Hino SmartSafe, a comprehensive safety package with advanced driver-assist technology that takes an active focus in protecting the lives of all road users. It comes standard with the Hino 300 Series.

Hino is also the only Japanese manufacturer to offer true automatic transmission options across the 4x2 model range. In addition to offering Australia’s only Hybrid Electric truck with the range now expanded to include Built to Go Trays, you can start saving money from day one.

For extra peace of mind, 5 Years Warranty^ and 5 Years Roadside Assist is now standard across the entire 300 Series 4x2 model range.



SAFETY

HINO SMARTSAFE COMES STANDARD WITH THE HINO 300 SERIES

Safety continues to be a central design principle of all Hino trucks, and the Hino 300 Series is no different. Featuring Hino SmartSafe, a comprehensive safety package† with advanced driver-assist technology that takes an active focus in protecting the lives of all road users. These advanced safety features are engineered as standard inclusions, not optional extras.







PRE-COLLISION SYSTEM

If PCS detects the possibility of a collision with a vehicle in front, using radar and image sensors, it will warn you to apply the brakes. If you don’t respond, the truck can brake autonomously.

PEDESTRIAN DETECTION

If PCS detects a pedestrian in front and senses the possibility of a collision it will warn you. If you don’t respond, the truck can brake autonomously.

LANE DEPARTURE WARNING SYSTEM

The LDWS uses the PCS camera, and can provide the driver with both audible and visual cues if the truck is deviating from its lane without the turn indicators being engaged by the driver.

VEHICLE STABILITY CONTROL

VSC is designed to help drivers maintain vehicle control and help prevent the truck from rolling over or sliding when entering or exiting a corner too fast.

REVERSE CAMERA

Offers wide view, high definition vision, along with infrared night vision. Includes a microphone with volume control which allows the driver to hear their surroundings.

DAYTIME RUNNING LAMPS

DRL’s are designed to highlight the truck’s presence to other road users and run any time the truck headlamps are not being operated. Boasting enhanced aesthetics as well as safety.

TECHNOLOGY

INNOVATION AND INFORMATION

Designed for purpose, the cab ergonomics have been enhanced throughout for a high degree of comfort. The instrumentation panel is impressive to look at and intuitive to work with. Innovative features maximise efficiency and driver enjoyment, resulting in a workspace you want to be in.

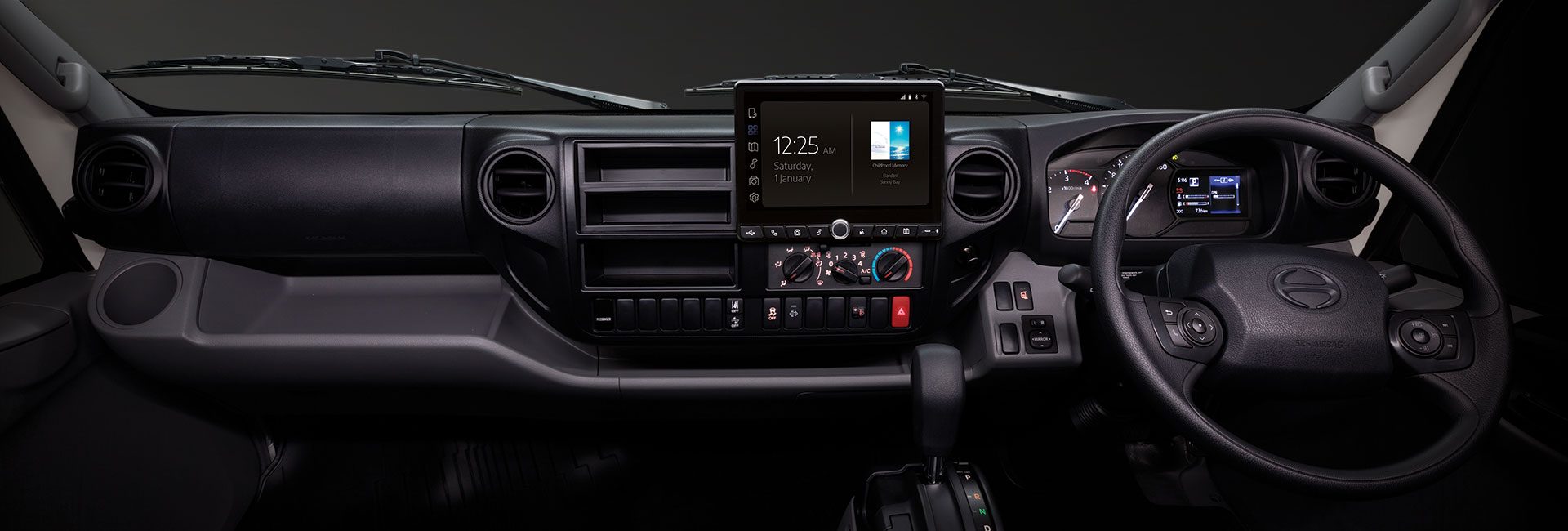

MULTIMEDIA UNIT

10.1" ultra high-definition, capacitive touch screen is capable of connecting up to 6 multi-position cameras and supports AM/FM / DAB+ radio, and Wi-Fi. Includes the latest version of Bluetooth connectivity enhancing call handling, profile pictures and improved speech to text functionality. The intuitive Multimedia Unit has been designed to integrate into the dash, with a particular focus on driver and vehicle ergonomics.

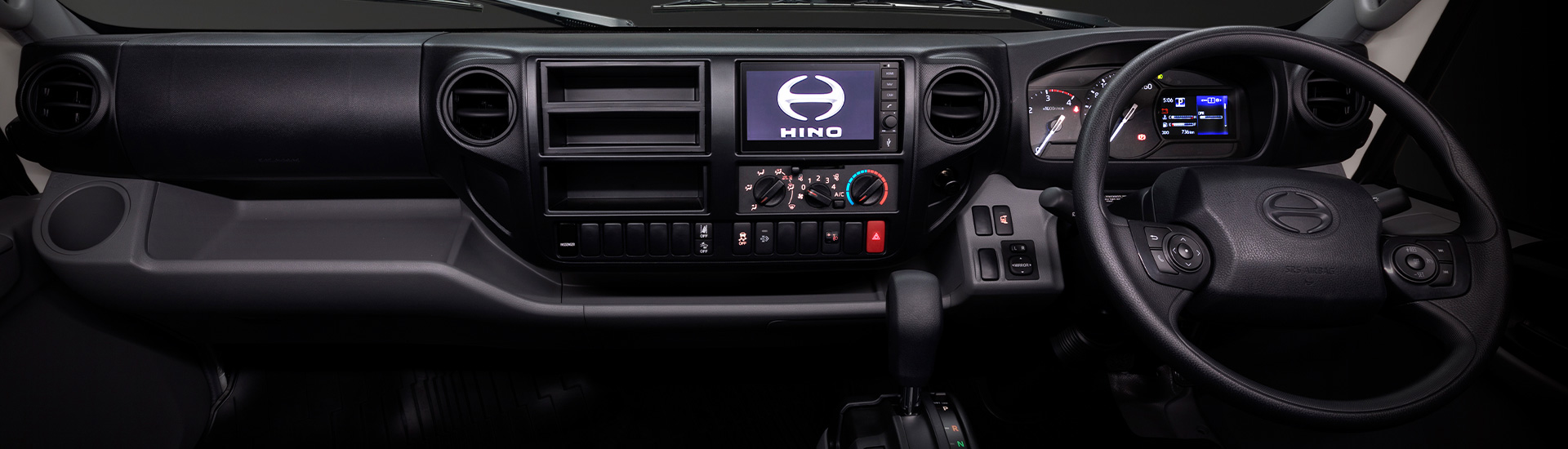

DRIVER INSTRUMENT PANEL

4.2” TFT LCD Multi Information Display with an enlarged and centralised speedometer, an offset tachometer, a suite of warning gauges and lights to improve readability.

CRUISE CONTROL

Automatically controls the road speed of the vehicle as set by the driver, which reduces fatigue and can improve overall fuel efficiency.

PERFORMANCE

POWER AND EFFICIENCY AHEAD OF THE REST

Equipped with a range of drivelines including 4 and 5 litre common-rail turbo diesel engines, which not only meet Euro 5 and EEV emissions standards but deliver an ideal combination of power and efficiency. Hino continues to be the only Japanese truck manufacturer to offer the advantage of a true automatic transmission across the 4x2 model range.







ENGINE

The engine line-up starts with the N04C, producing up to 150hp and 420Nm and continues all the way to the J05E found in the 721 and 921 models, producing up to 205hp and 600Nm.

AUTOMATIC TRANSMISSION

True automatic transmissions are available across the range, offering no torque interruptions between gear shifts, smooth driveability, and lower whole of life costs.

MANUAL TRANSMISSION

Drivers who still prefer a manual transmission, for Standard Cab there is a Hino five-speed manual gearbox and for Wide Cab 4L models a Hino six-speed manual gearbox is available.





Hybrid Electric Driveline

ENGINE

Powered by the N04C four cylinder engine and the electric motor, the hybrid driveline delivers a combined 150hp and 470Nm of torque from a very low 1200RPM.

EMISSIONS STANDARD

Meeting Euro 6 emissions standards through the exhaust gas after-treatment unit which contains a Diesel Particulate Reduction system and Selective Catalytic Reduction system.

AUTOMATED TRANSMISSION

The six-speed automated transmission is coupled directly to the electric motor, which assists with quicker and smoother gear shifts.

COMFORT

DESIGNED FOR THE DRIVER

Enhanced levels of comfort and functionality have been applied to the design to ensure better accessibility and ultimately improve the overall driving experience.





ERGONOMICS

Superior levels of interior ergonomics have been designed with the driver in mind. Improved dash layout, ample storage, new steering wheel controls and enhanced driver comfort.

STEERING

Easily tilt and reposition the steering wheel for optimum driver comfort. The telescopic steering column is designed with an energy absorbing steering wheel to protect the driver.

DRIVER’S SEAT

All models are fitted with an ergonomically designed fully adjustable driver’s seat for maximum comfort. All Wide cab models include a suspended driver’s seat.

SPECIFICATIONS



AXLES LICENCE MODEL TRANS GVM GCM hp / Nm WHEELB# SPEC DRAWING
4x2 CAR / LR 616 MAN 4.5 / 5.5 GVM + 3.5 150 / 420 2.5 Enquiry
CAR / LR 616 AT 4.5 / 5.5 8 150 / 420 2.5 ~ 3.4 Enquiry
CAR / LR 616 AMT 4.5 / 5.5 GVM + 3.5 150 / 470 3.4 Enquiry
CAR / LR 616 AT 4.5 / 5.5 8 150 / 420 2.8 ~ 3.9 Enquiry
CAR / LR 616 AT 4.5 / 5.5 8 150 / 420 3.9 Enquiry
CAR / LR 616 AMT 4.5 / 5.5 GVM + 3.5 150 / 470 3.4 Enquiry
CAR / LR 617 MAN 4.5 / 5.5 GVM + 3.5 165 / 464 2.8 ~ 3.4 Enquiry
CAR / LR 617 MAN 4.5 / 5.5 GVM + 3.5 165 / 464 3.9 Enquiry
CAR / LR 716 AMT 6.5 / 4.5 GVM + 3.5 150 / 470 3.4 Enquiry
CAR / LR 716 AT 6.5 / 4.5 8 150 / 420 3.4 ~ 3.9 Enquiry
CAR / LR 716 AT 6.5 / 4.5 8 150 / 420 4.2 Enquiry
CAR / LR 717 MAN 6.5 / 4.5 GVM + 3.5 165 / 464 3.4 ~ 3.9 Enquiry
CAR / LR 717 MAN 6.5 / 4.5 GVM + 3.5 165 / 464 4.2 Enquiry
CAR / LR 721 AT 6.5 / 4.5 GVM + 3.5 205 / 600 3.5 ~ 3.9 Enquiry
CAR / LR 721 AT 6.5 GVM + 3.5 205 / 600 4.4 Enquiry
CAR / LR 816 AT 8.0 / 4.5 8 150 / 420 3.4 ~ 3.9 Enquiry
CAR / LR 816 AT 8.0 / 4.5 8 150 / 420 4.2 Enquiry
LR / MR 916 AMT 8.0 GVM + 3.5 150 / 470 3.9 Enquiry
LR / MR 917 MAN 8.0 GVM + 3.5 165 / 464 3.4 ~ 4.2 Enquiry
LR / MR 917 MAN 8.0 GVM + 3.5 165 / 464 4.2 Enquiry
CAR ~ MR 921 AT 8.0 / 4.5 GVM + 3.5 205 / 600 3.5 ~ 4.4 Enquiry
CAR ~ MR 921 AT 8.0 GVM + 3.5 205 / 600 4.4 Enquiry

ACCESSORIES

HINO GENUINE ACCESSORIES



Turn to Hino Genuine Accessories to enhance your truck’s appearance. Only Hino Genuine Accessories are designed, calibrated and engineered to fit perfectly, first time every time, and perform effortlessly over the long haul. Whether you want the full protection of a bullbar, the surety of a navigation package or the comfort of sheepskin seat covers, you want Hino Genuine Accessories. All backed by a 3 Years Unlimited Kilometre Accessories Warranty when fitted by an authorised Hino dealer.



VIEW LATEST ACCESSORIES

WHY HINO?



CAPPED PRICE SERVICE

We were the first truck manufacturer to offer Capped Price Service* on all Euro 5 models onwards, so you can now control your operating costs and plan ahead.



Find out more >>

HINO FINANCIAL SERVICES

When it comes to financing your next truck, Hino Financial Services provides a real advantage with a great range of flexible finance options backed by the strength of Toyota Finance.



Find out more >>

HINO CUSTOMER SUPPORT

We’re driven to do more for you with 3 years free roadside assist with 24/7 support along with personalised support solutions through our in-house Hino Customer Support Centre.



Find out more >>

Get in touch with our team


Call 1800 04 HINO

Find a dealer

Email or request a call back





Disclaimers:
†Active safety systems are an aid to assist the driver and have performance limitations. The image used is for representation purposes only and actual product may vary. Please refer to owner’s manual for system operations and functionality.
*Service offer applies to all Euro 5 models onwards and available only at participating Hino dealerships. These rates are capped until 31 December 2025. On or before 31 December each year, Hino Australia will publish on www.hino.com.au the maximum price for a specified Scheduled Service that will be applicable from, and remain capped for, the following calendar year only. For details on pricing, items not included in the Service Price and for full terms and conditions click here.
^Maximum kilometre limitations apply: 5 years or 250,000km, whichever comes first. Components not covered include: All maintenance and service related items including adjustments and calibrations, equipment and bodies mounted to vehicles.
